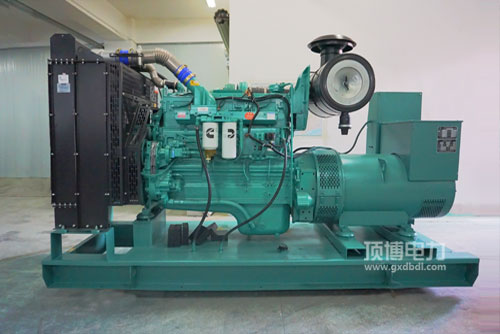

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用汽车发动因燃料成本性好: 先进的的燃料管理机模式，独具特色的STC、ESTC 等级划分管理机模式，特殊化设计制作的活塞件顶部熔化室，低压喷射式燃料，有力雾化吸入，熔化有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用热车机瞬态能力良好: 极致的热车机综合设汁，搭配康明斯特殊的EFC体统，掌控的精密度较高，加载失败事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用热车机升马力高: 整体风格定制紧促.外观设计摆放合理安排，加载稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50拥有中国国非路面3.时间段及北美地区Tier2. Tier 3尾气排放标准相关法律法规规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件而犯性好， 启动因程序运行及运维大保养方便，生产利润高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

额定功率规模 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯电站用发起机的优势：表面积小， 解压缩比较高， 隔栅气流加水，易启动的，转动车载多媒体电的安全可靠。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发思想类型	最常用公率(kW)Prime Power	备用电源最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
